1000kgs Weight Capacity Pallet Storage Shelving for Green Industrial Up to 5 Pallets

Ask Lasest Price
Model Number :	HHT
Price :	$1.30/kilograms >=1000 kilograms

Add to Cart

Product Details
Company Profile

1000kgs Weight Capacity Pallet Storage Shelving for Green Industrial Up to 5 Pallets

Push-back pallet rack is for high density storage. The depth is usually within 5 pallet positions. The rack takes "first-in-last-out (FILO)" access mode.

Characteristics

-Applicable to warehouses with high cost per unit area, such as cold storage, warehouses in prime locations in downtown, etc.
-Provide 20%-30% selectability
-Both safety and operating efficiency are higher than drive-in racks (drive through racks).
-Compared with adjustable pallet rack, it increases the utilization rate of the ground by about 60%.
-It can be used with a reach forklift or a counterbalanced forklift, and the forklift operation requirements are lower than drive-in pallet rack.

Components

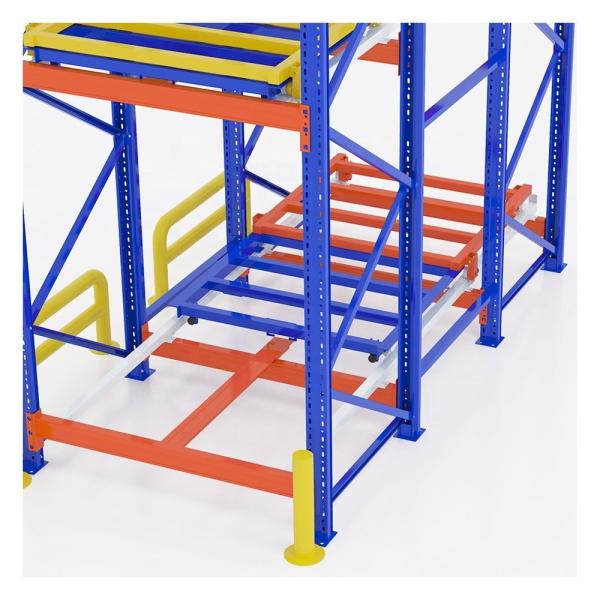

The main components are upright frames, beam, support rail, and carrying cart. The rack is bolted structure and easy to dismantle
and install to a new place.

Product Information

Rack Type			push back pallet rack
Rack Cost			Low, Medium Low,Medium,√Medium high,High,Higher
Pick-up Mode			first in, last out(FILO)
Structure			knock down or assembled
Forklift Asile			around 3200mm,depends on customer's forklift parameter
Load Capacity & Dimension	Load capacity		≤1500kgs/pallet
	length		950mm～2700mm
	depth/width		1700mm～5000mm
	height		≤9000mm
	level		≥2
Components	core components		frame(upright,also called column or post,bracing,base plate,fasteners),beam,support rail,cart,spacer
	highly recommended components		upright protector,frame protector
Core Components Specification (mm)	upright section	face	80,90,100,120
		height	60,67,70,95,135
		thickness	1.5,1.8,2.0,2.3,2.5,3.0
		adjust step	75
	beam section	height	80,100,110,120,130,140,160,180
		width	50
		thickness	1.5,2.0
Material			Q235(ss400),Q355(S355B,S355JR)
Finish			Epoxy resin electrostatic spraying(powder coating),galvanized
Coating thickness			no less than 60um for average thickness for powder coating
Color			ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers

Store & Withdraw

Loading

Carrying cart runs along the inclined support rail. 1st pallet is placed on the carrying cart, 2nd pallet pushed back 1st pallet into the rack, 3rd pallet push the front 2 pallets into rack, the rest keep the same operation.

Unloading
Pallet at the pick-up end is carried out first, the next pallet slides to the pick-up point by gravity for unloading, other keep the same. Unlike drive in pallet rack, forklift truck don’t drive into the rack

Packaging & Shipping

To suit different clients needs,HBrack use different storage method.Following are rules followed. For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg For less than container order:plywood box or other that can keep the product safe during transportation Other: based on clients' needs, such as vacum packing etc.

FAQ

Question 1: Are you factory or trading company?

Answer 1: We are factory and also do trading products related to warehouse rack.

Question 2:Do you provide sample? Is it free or extra?

Answer 2: We provide sample parts free charged and you just need to pay the freight. When need whole sample rack for testing the possibility, please contact us for sample cost.

Question 3: I’d like to visit you. Which city should I go?

Answer 3: We are in Nanjing. When needed, we can help you book hotel, traffic ticket. And we will pick you up to the destination place. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.

Question 4: Why choose you?

Answer 4: 1. HBrack have engineers who are professional in design warehouse rack more than 10 years and could handle from simple structure to complex one. 2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack, all the personal information is trackable. 3. HBrack offer different design to help client control budget.
