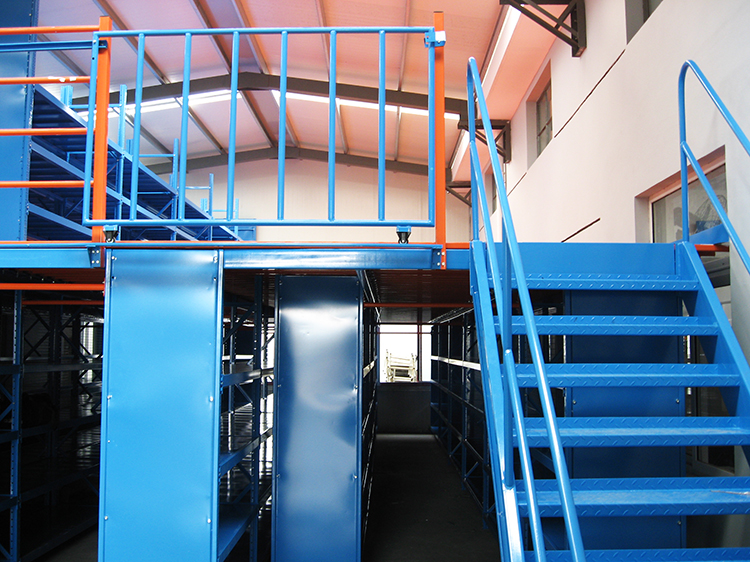

1. Rack supported mezzanine, or multi tier rack, is usually for
storage of goods picked up manually.
2. Compared with steel shelving, rack supported mezzanine is higher on height, and could make more
use of warehouse space.
3. Size and load are customized based on clients’ storage needs.
4. Load per shelf level is usually within 500kgs. Mostly, floor
load per square meter is from 300kgs to 500kgs.
5. There are doors for loading and unloading goods.
6. When the height is out of reach, it could be used with ladder.
7. The general ways of transportation from one floor to another
are: staircase, lift, hoist machine, conveyor belt, slideway, and
forklift truck, etc.
8. It’s used in machinery manufacturing industry, logistics center,
distribution center, food industry, chemical industry, electronic
industry, furniture industry, warehouse supermarket, etc.
Product Information
| Rack Type | rack supported mezzanine |
| Model | HGL-A | single or multi tier (layer) rack supported mezzanine |
| HGL-B | single or multi tier (layer) rack supported mezzanine topped with
floor |
| Access Style | flexiable |
| Structure | knock down or assembled,welded structure available |
| Working Asile | around 1000mm,depends on customer's storage needs |
| Load Capacity & Dimension | Load capacity | light duty | ≤150kgs/level |
| medium duty | 150~500kgs/level |
| heavy duty | ≥500kgs/level |
| floor load | 300kgs~800kgs/sqm |
| length | 900mm~3000mm |
| depth/width | 250mm~2000mm |
| height | 3500mm~8000mm |
| tier | ≥1 |
| Components | core components | frame(upright,also called column or post,bracing,base
plate,fasteners),beam,shelf,stairase,handrail |
| optional components | wire mesh decking,back/side board,back/side mesh,top tie, divider |
| Core Components Specification | upright section | face | 55mm,80mm,90mm,100mm,120mm |
| height | 47mm,55mm,57mm,60mm,67mm,95mm,135mm |
| thickness | 1.5mm,1.8mm,2.0mm |
| adjust step | 50mm,75mm |
| beam section | height | 50mm,60mm,80mm,110mm |
| width | 30mm,40mm,50mm |
| thickness | 1.2mm,1.5mm,1.8mm,2.0mm |
| Material | Q215,Q235(ss400),Q355(S355B,S355JR) |
| Finish | Epoxy resin electrostatic spraying(powder coating) |
| Coating thickness | no less than 40um for average thickness |
| Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure
orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
Galvanized floor for saving cost
Sliding door for loading and unloading, flip door, pivoting door
are available based on needs. Side plate for protecting cargo from
falling.
Different transportion solution
Different floor panel to suit different needs
For detailed quote and drawing,please provide following
information:
1. Rack size and mezzanine size
2. Max. rack layer load and floor load
3. Staircase quantity and position
4. Mezzanine layer needed
5. Other matters need us take care of
FAQ
Question 1: Are you factory or trading company?
Answer 1: We are factory and also do trading products related to warehouse
rack.
Question 2:Do you provide sample? Is it free or extra?
Answer 2: We provide sample parts free charged and you just need to pay the
freight. When need whole sample rack for testing the possibility,
please contact us for sample cost.
Question 3: I’d like to visit you. Which city should I go?
Answer 3: We are in Nanjing. When needed, we can help you book hotel,
traffic ticket. And we will pick you up to the destination place.
We have sales person and driver who will be with you during the
visit. You don’t have to worry about the traffic matter.
Question 4: Why choose you?
Answer 4:
1. HBrack have engineers who are professional in design warehouse
rack more than 10 years and could handle from simple structure to
complex one.
2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack,
all the personal information is trackable.
3. HBrack offer different design to help client control budget.
