Model Number : | HTP |
Supply Ability : | 2000 Kilogram/Kilograms per Month |
Price : | $0.90 - $1.50/kilograms |

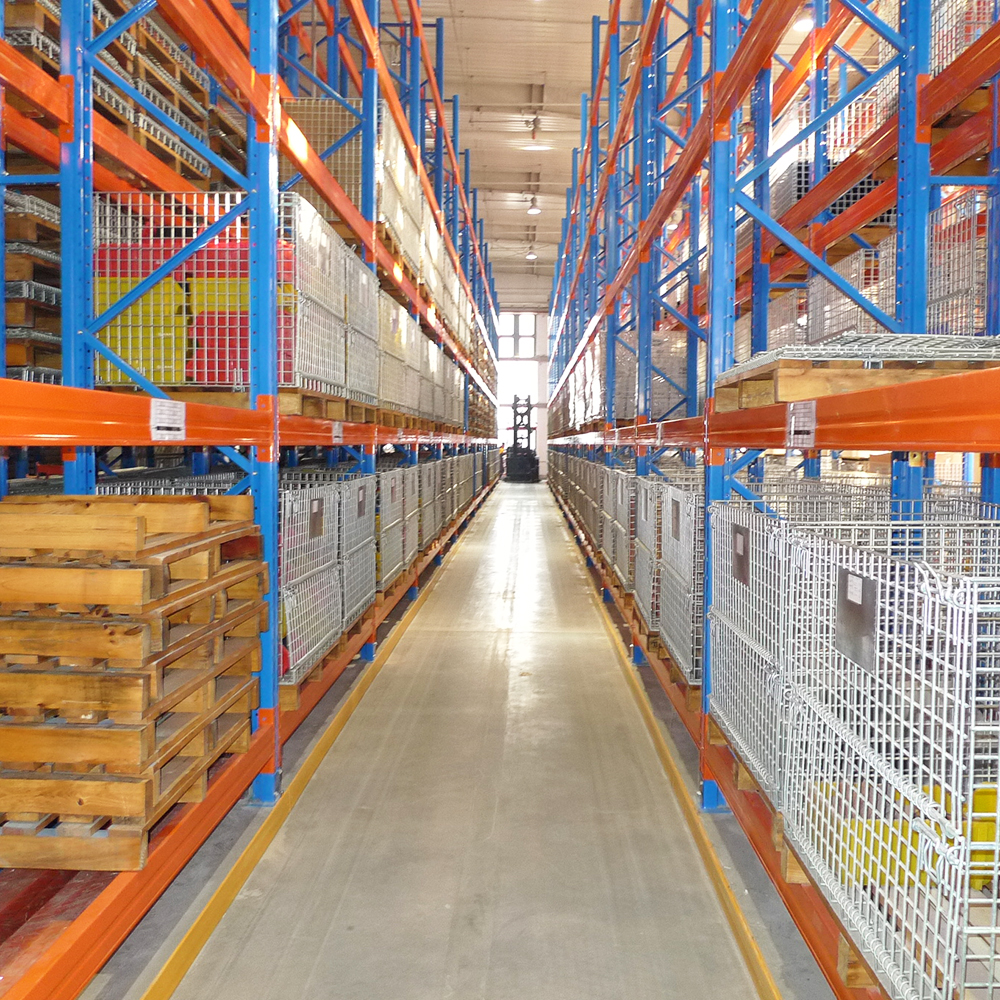

Rack Type | VNA very narrow aisle pallet rack | ||||
Rack Cost | Low, Medium Low√,Medium,Medium high,High,Higher | ||||
Pick-up Mode | flexiable | ||||
Structure | knock down or assembled,welded structure available | ||||
Forklift Asile | around 1700mm,depends on customer's forklift parameter | ||||
Load Capacity & Dimension | Load capacity | ≤4000kgs/beam pair | |||
length | 950mm~3700mm | ||||
depth/width | 700mm~1500mm | ||||
height | ≤12000mm | ||||
level | ≥2 | ||||
Components | core components | frame(upright,also called column or post,bracing,base
plate,fasteners),beam,(aisle guide) | |||
optional components | spacer,wire mesh decking,board,back stopper,top tie,side
mesh,pallet support,back bracing,etc. | ||||
Core Components Specification | upright section | face | 80mm,90mm,100mm,120mm | ||
height | 60mm,67mm,70mm,95mm,135mm | ||||
thickness | 1.5mm,1.8mm,2.0mm,2.3mm,2.5mm,3.0mm | ||||
adjust step | 75mm | ||||
beam section | height | 80mm,100mm,110mm,120mm,130mm,140mm,160mm,180mm | |||
width | 50mm | ||||
thickness | 1.5mm,2.0mm | ||||
Material | Q235(ss400),Q355(S355B,S355JR) | ||||
Finish | Epoxy resin electrostatic spraying(powder coating) | ||||
Coating thickness | no less than 60um for average thickness | ||||
Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure
orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers |
![]() |
