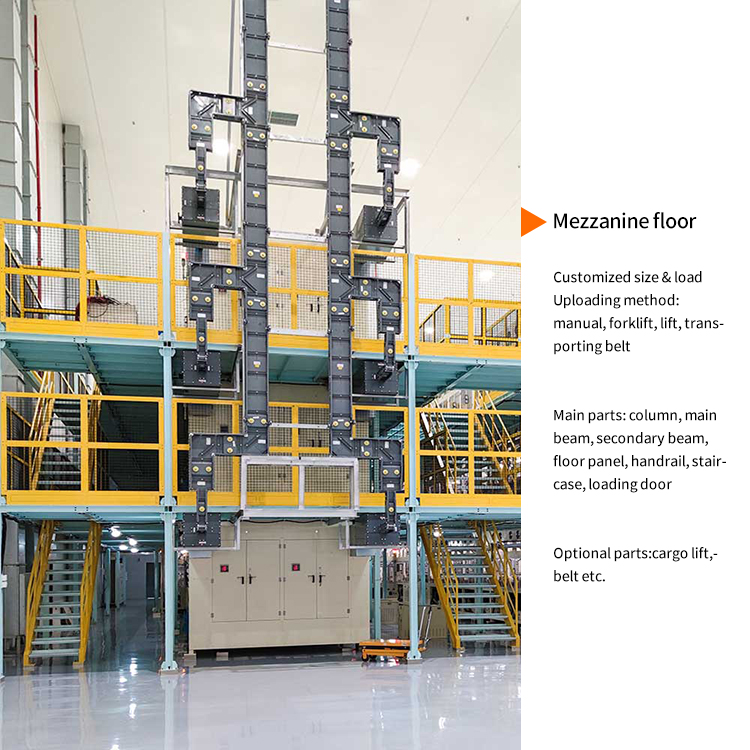

-The steel mezzanine structure is fully assembled. -Floor is easy
to match the lighting system.
-Cargo is transported to the higher floor by forklifts, lifting
platforms or freight elevators, and then transported to designated
locations by trolleys or hydraulic pallet trucks.
-The column distance of this steel mezzanine is usually 4m to 6m.
-The height of the first floor is about 3m, and the height of the
second and third floors is about 2.5m, or height based on storage
needs.
-The floor load is usually from 300kgs/m2 to 1000kgs/m2.
-This type of mezzanine can combine storage and management with the
closest distance, and can be used as a warehouse office upstairs or
downstairs.
| Rack Type | steel mezzanine |
| Access Style | flexiable |
| Structure | knock down or assembled,welded structure available |
| Working Asile | around 1000mm,depends on customer's storage needs |
| Load Capacity & Dimension | Load capacity | 300~1000kgs/square meter |
| column distance | 3000mm~9000mm |
| height | 3500mm~10000mm |
| tier | ≥1 |
| Components | core components | column(post), main beam, secondary beam, floor,staircase |
| optional components | handrail, door, bracing, separating mesh, etc. |
| Core Components Material | upright | square steel tube, round steel tube, H steel |
| beam | C-shape steel, H steel |
| floor | interlock floor, checkered plate, plan plate, steel grating, wooden
plate |
| Material | Q215,Q235(ss400),Q355(S355B,S355JR) |
| Finish | Epoxy resin electrostatic spraying(powder coating) |
| Coating thickness | no less than 40um for average thickness |
| Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure
orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
Packing and shipping
To suit different clients needs,HBrack use different storage
method.Following are rules followed.
For container order: stretch film+carton board+packing belt+plywood stick+plywood
pallet leg
For less than container order:plywood box or other that can keep the product safe during
transportation
Other: based on clients' needs, such as vacum packing etc.
For detailed quoted and drawing, please provide following
information:
1.Mezanine size needed.
2.Level needed
3.Max. load per square meter
4.Use hydraulic jack or not
5.Other matters that need to consider.
